Floor-Standing Electrical Control Cabinet With HMI Cutout

Floor-Standing Electrical Control Cabinet With HMI Cutout

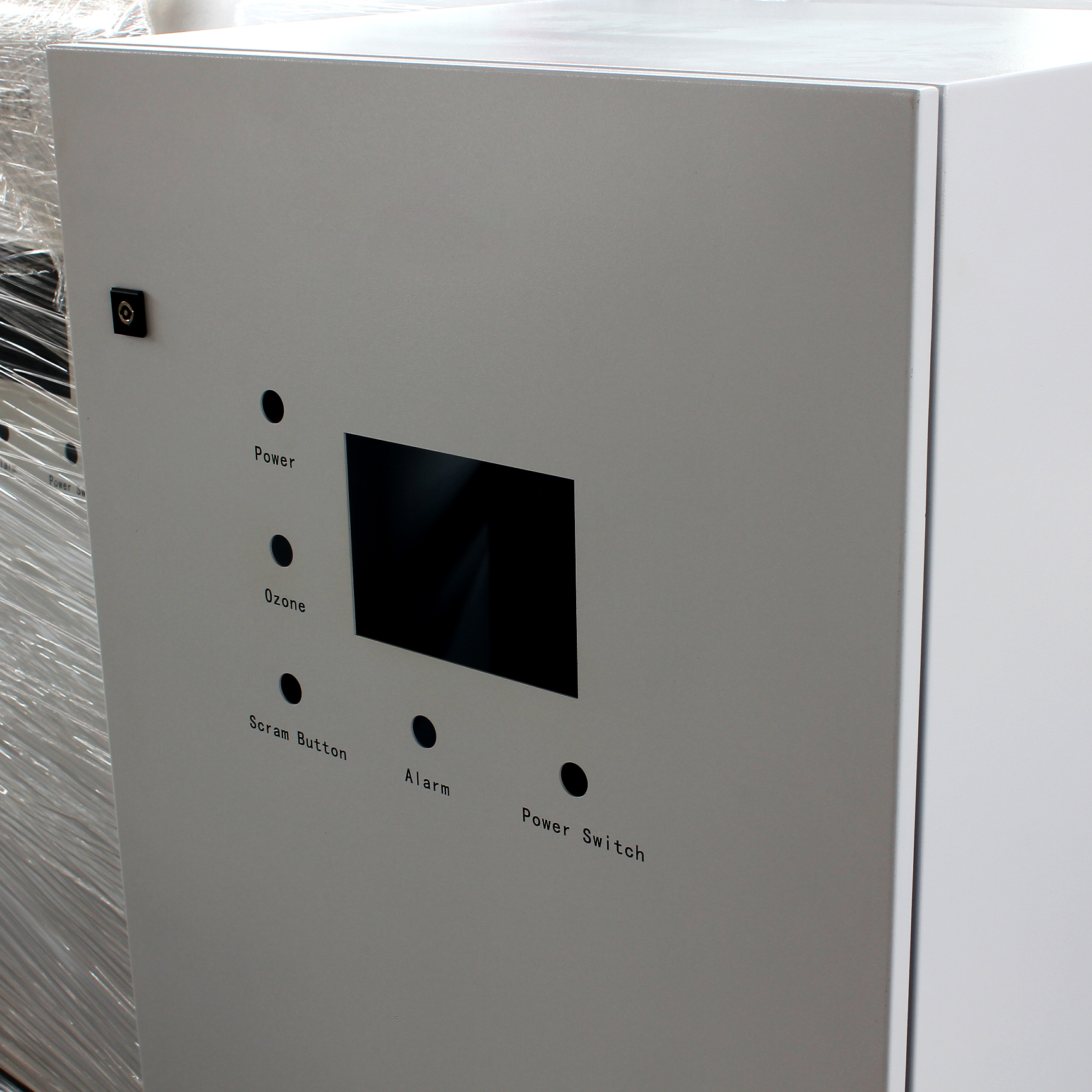

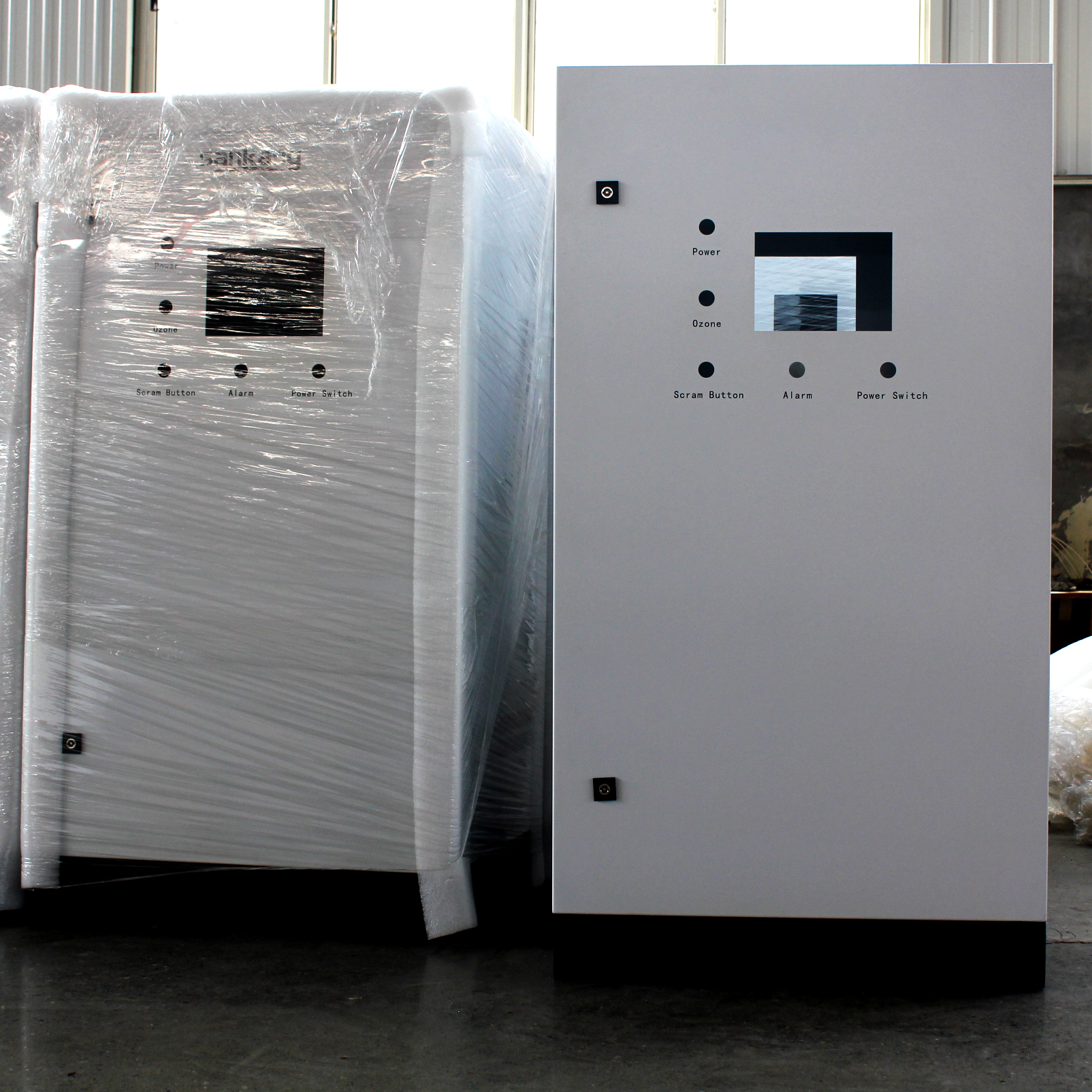

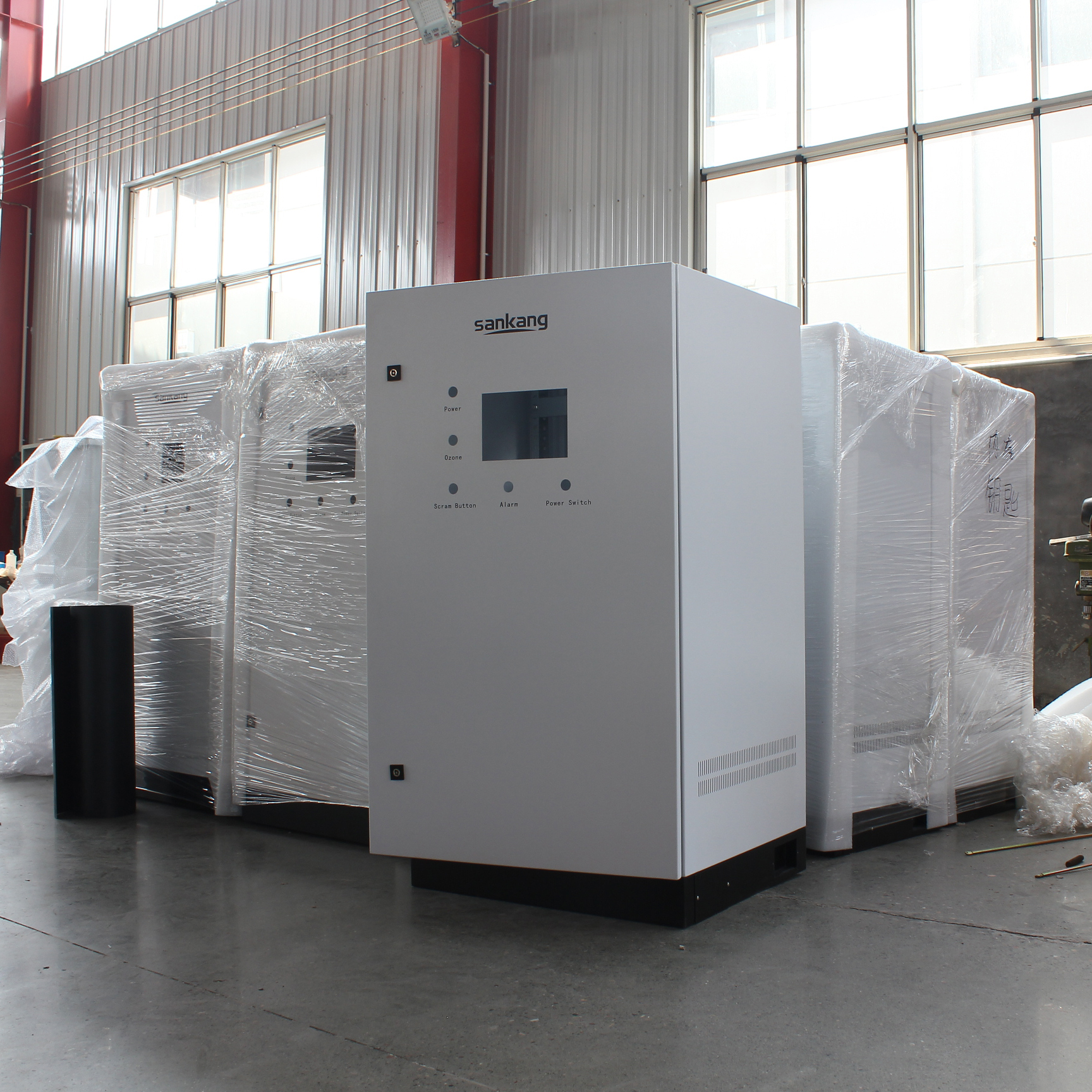

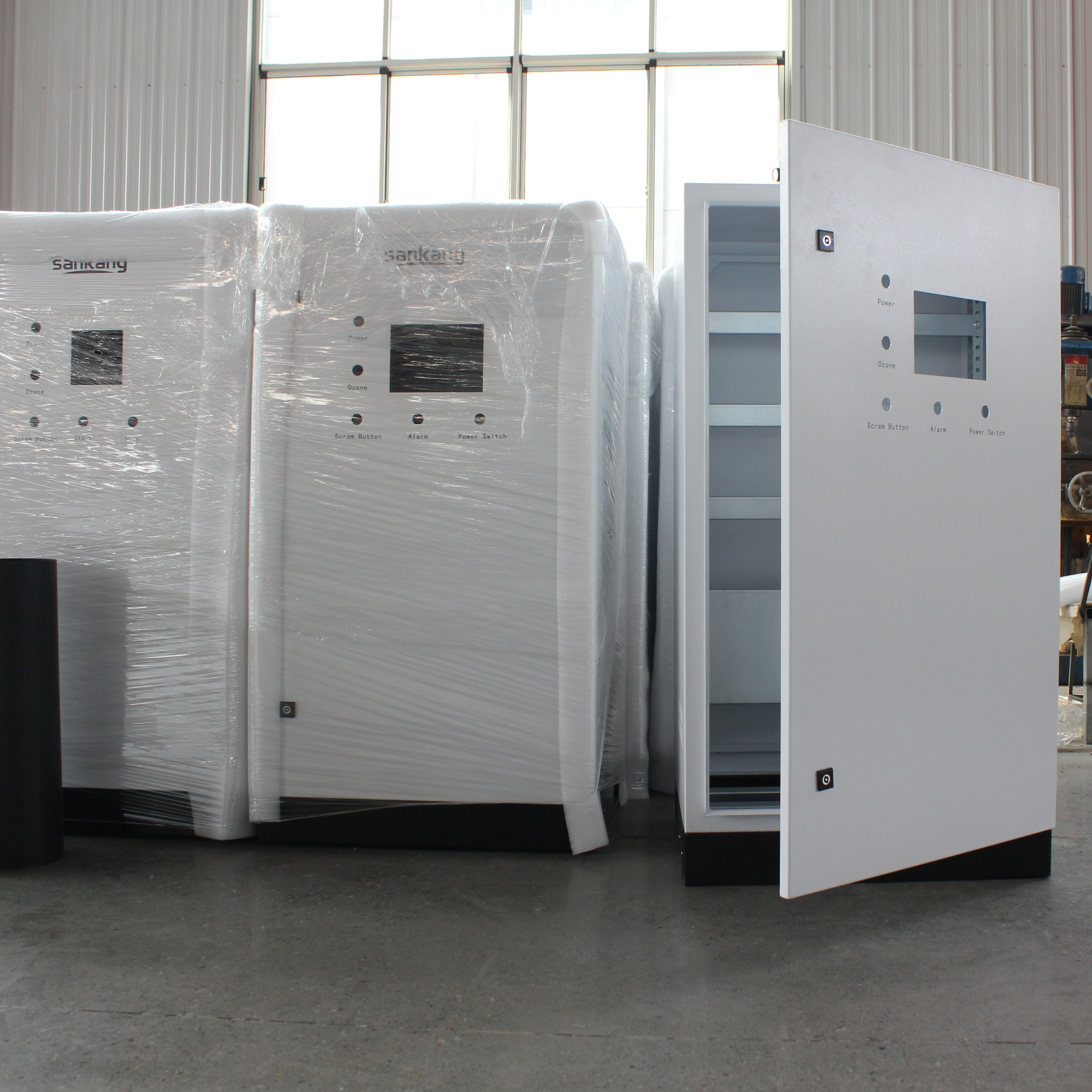

This floor-standing electrical control cabinet with HMI cutout is intended for industrial automation and control assemblies that need a full-height enclosure. The pictured configuration includes a front display opening, control-device cutouts, a lower ventilation section and a raised base. Final dimensions and internal features are built around the selected equipment.

Plan the Front Door Interfaces

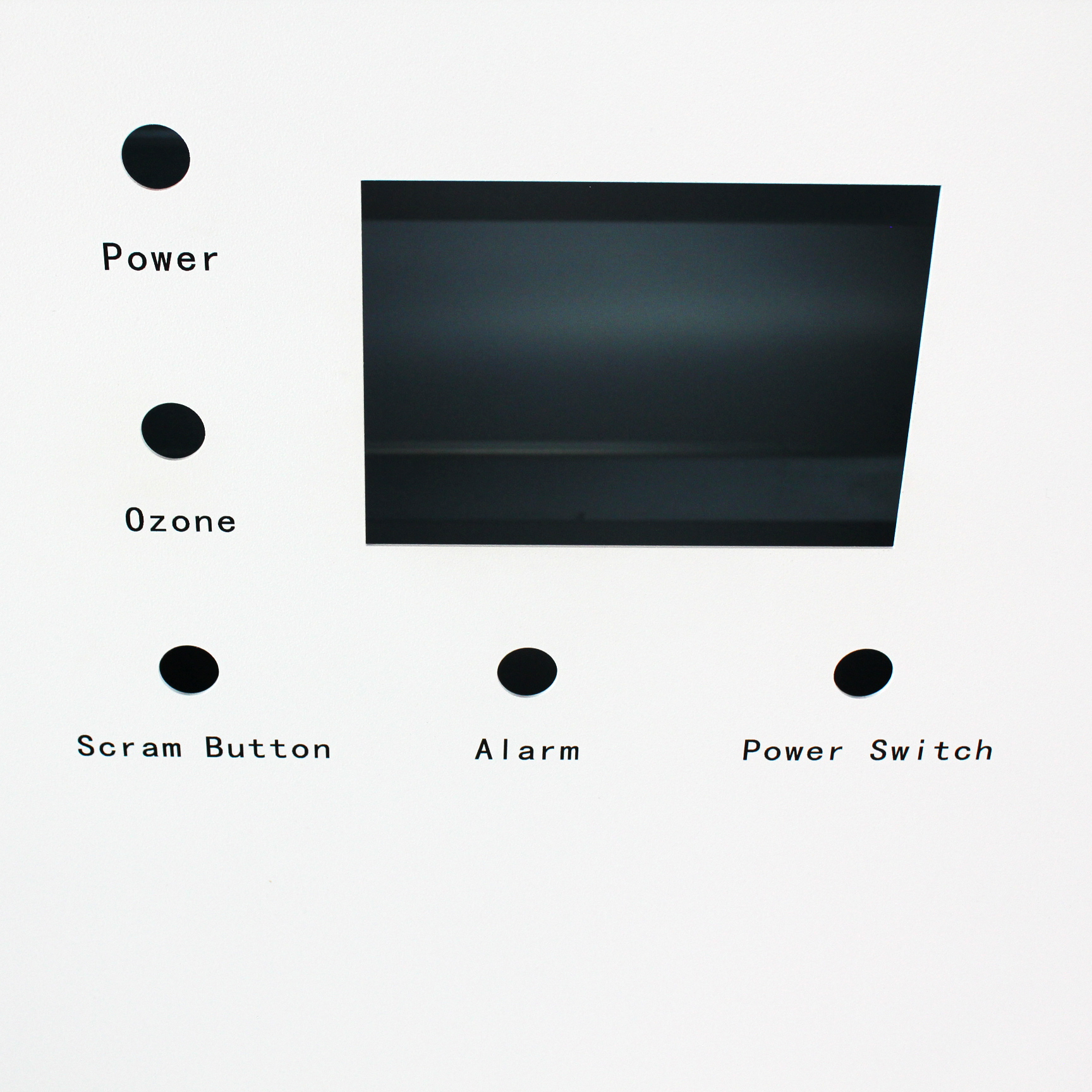

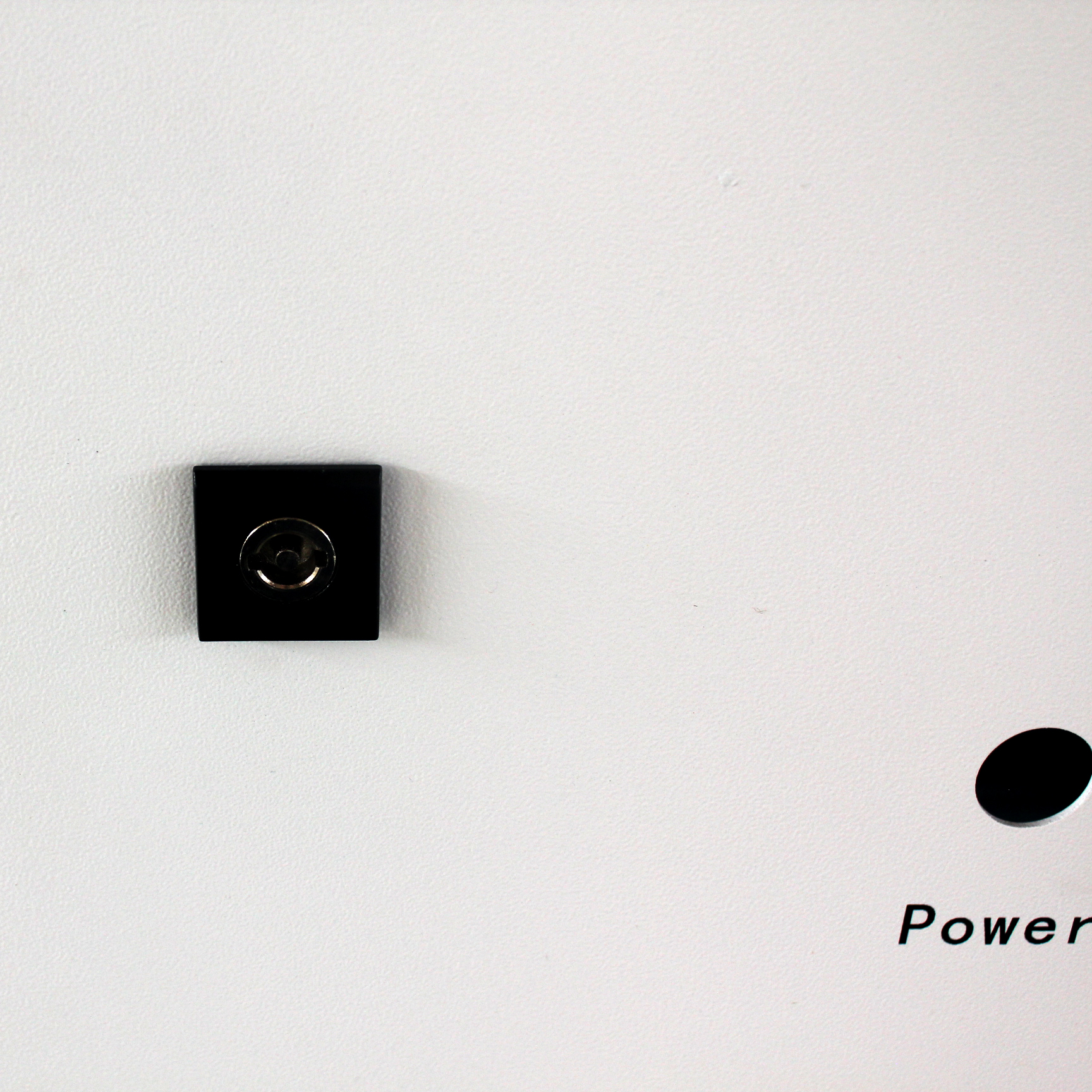

Provide HMI, indicator, switch and handle models together with their cutout drawings. Opening positions should be referenced from fixed datum points and checked against the usable door area, component depth and wiring clearance. Door reinforcement may be required where equipment weight or a large opening affects stiffness.

Internal Layout and Service Access

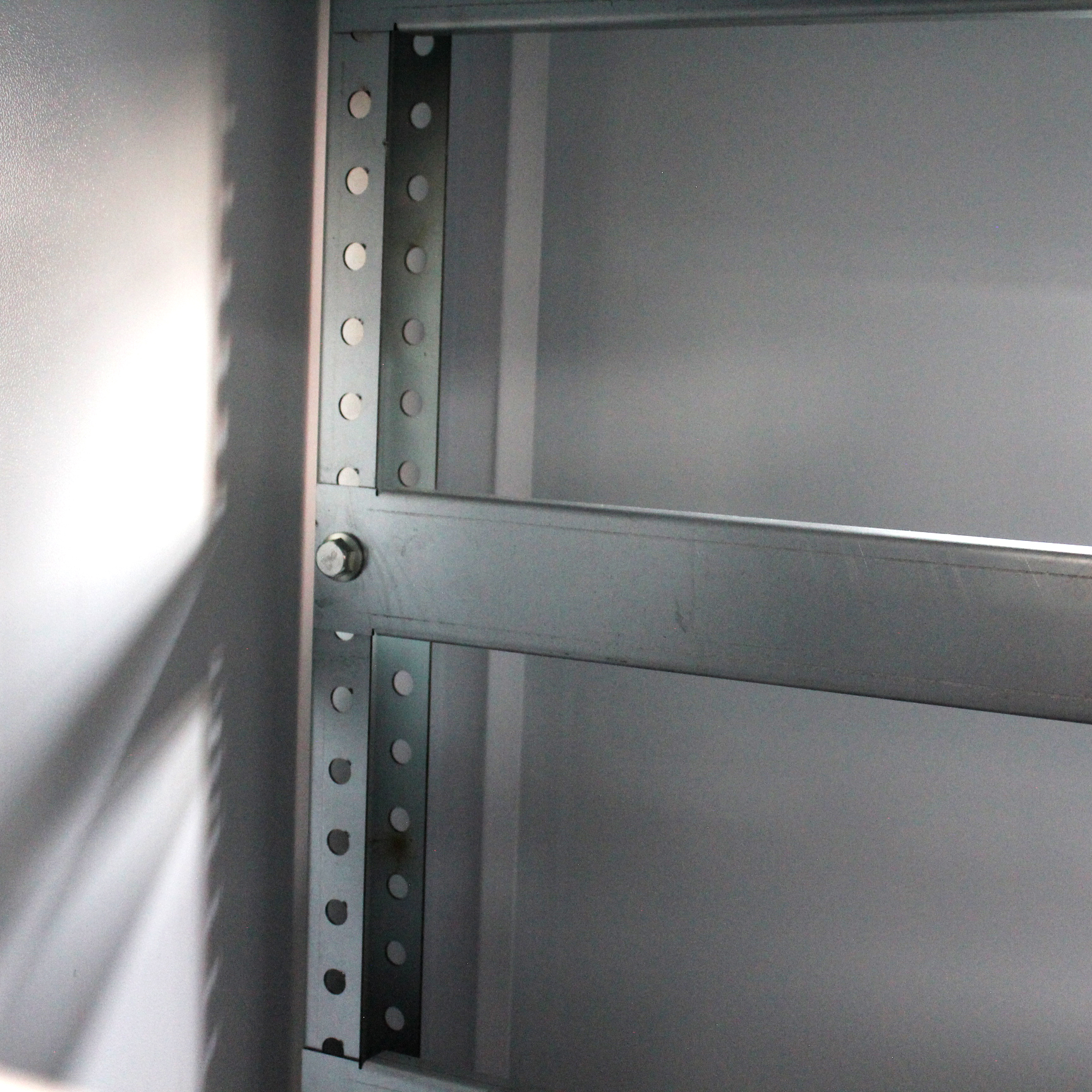

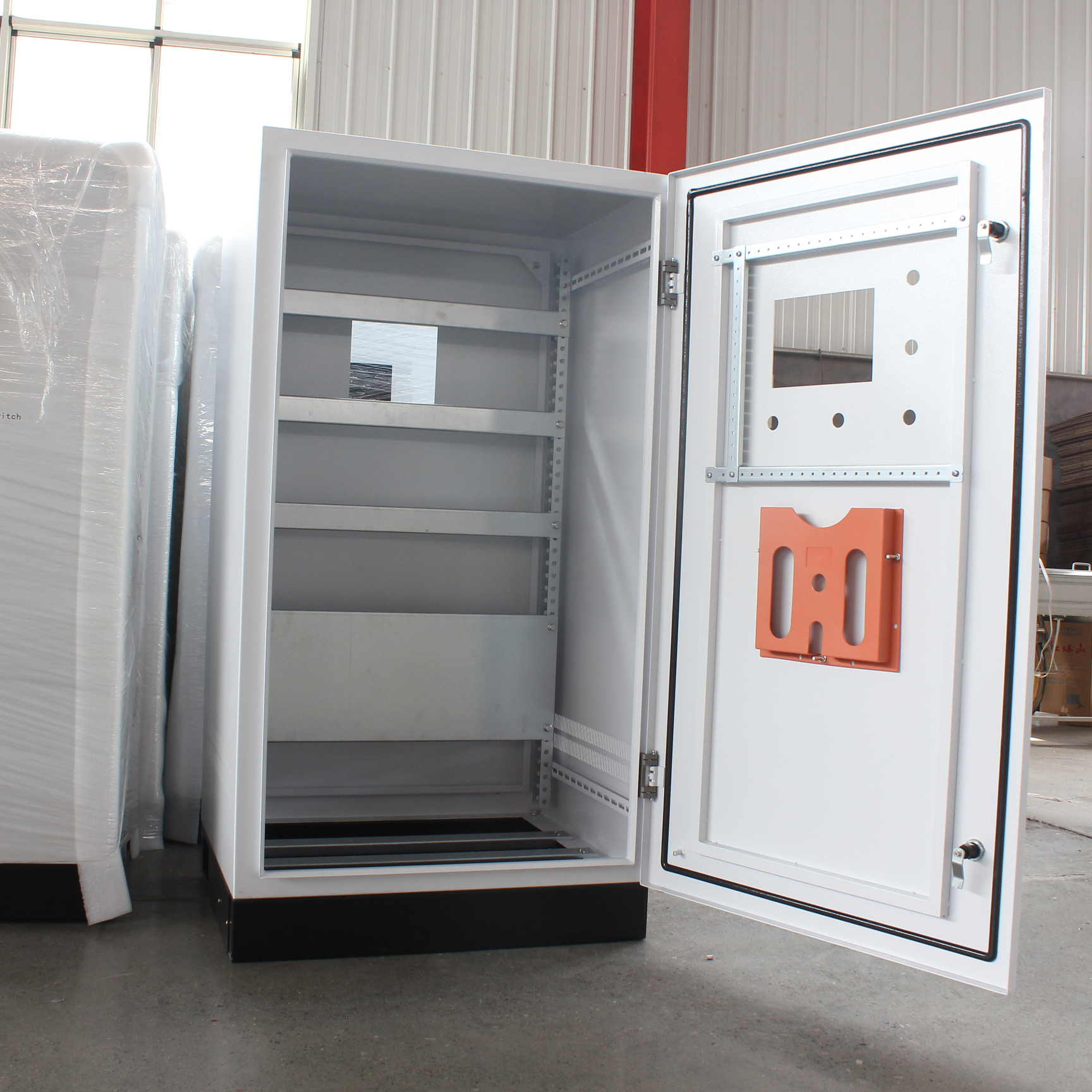

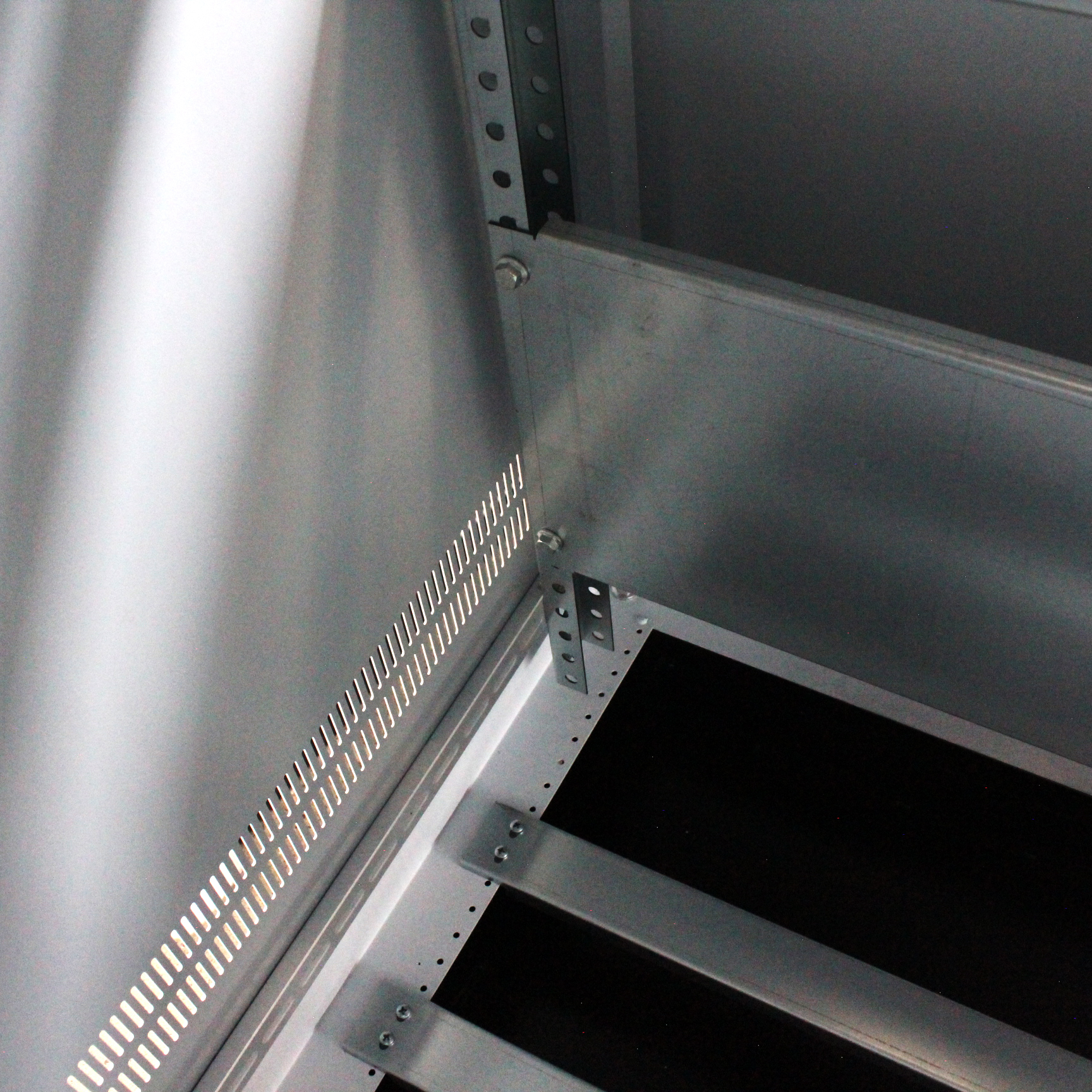

The cabinet can incorporate a mounting plate, DIN rails, wire ducts, brackets and cable-entry provisions. Component spacing should allow wiring, heat dissipation and replacement. Door swing, aisle clearance and access to terminal points must be considered before the general arrangement is approved.

Ventilation and Protection

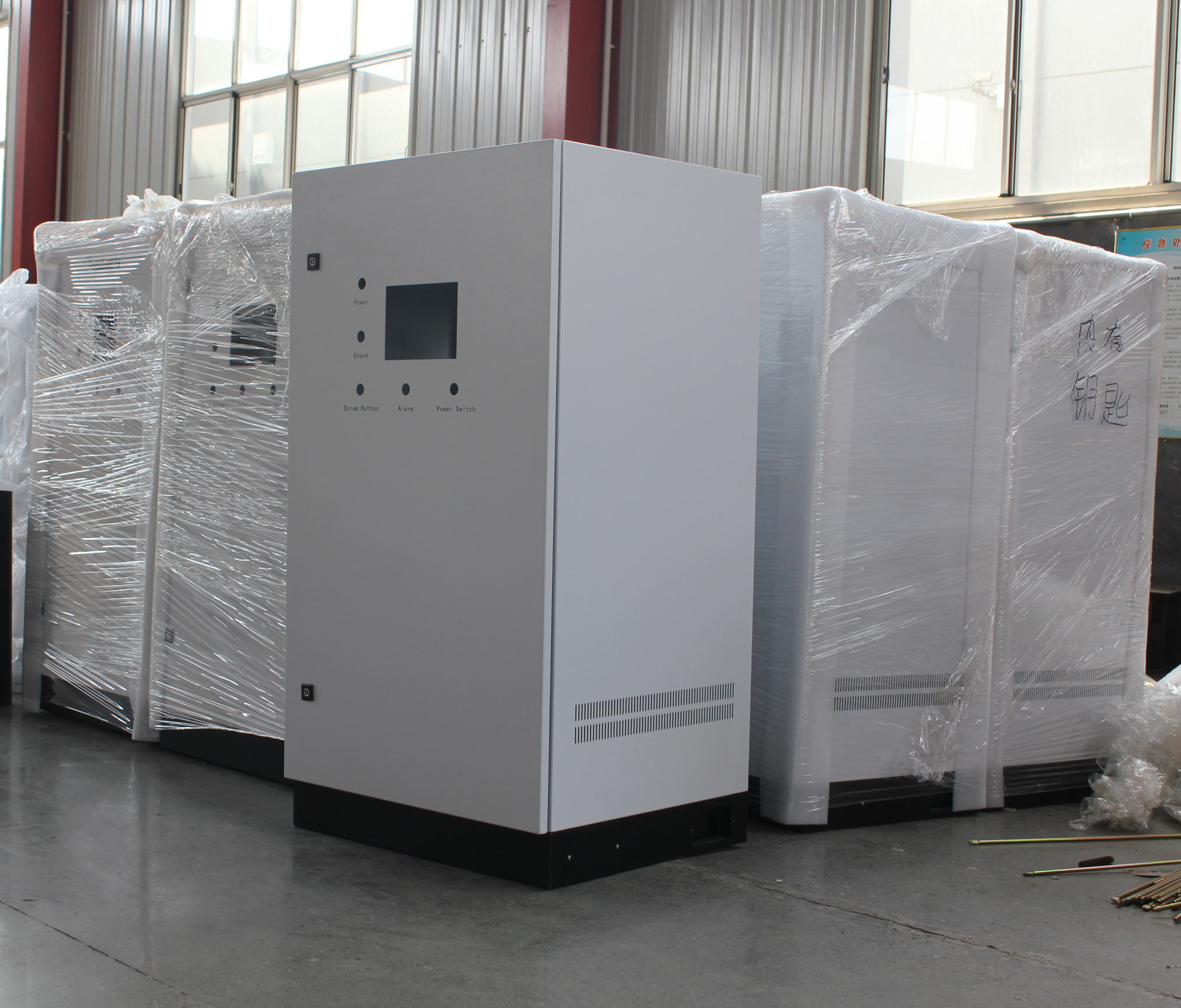

The visible lower ventilation area is one possible configuration, not a universal solution. Provide heat-load data, ambient conditions and the target ingress performance so fans, filters, louvers or cooling provisions can be evaluated. Ventilation and sealing requirements must be coordinated.

RFQ Checklist

• Overall cabinet dimensions and quantity
• HMI and front-panel device cutout drawings
• Internal component and mounting layout
• Heat load, ventilation and cooling requirements
• Material, sheet thickness, finish and color
• Door, lock, base and cable-entry details
• Target rating and inspection documentation

Compare Cabinet Platforms

For removable modular panels, compare the PS modular steel cabinet. For a simpler folded structure, review the standard folded steel cabinet. Dimensions and finish can be verified through the quality inspection process.

Request a Control Cabinet Review

Send the equipment layout and panel drawings through the contact page. Previously listed dimensions of 197 × 157 × 315 inches were inconsistent and have been removed pending a verified drawing.
