Standard Folded Steel Electrical Cabinet

Standard Folded Steel Electrical Cabinet

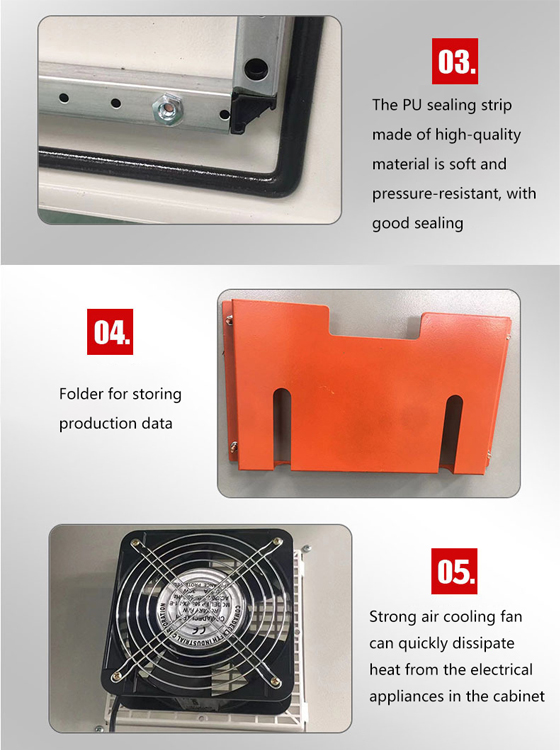

The standard folded steel electrical cabinet is a floor-standing enclosure format for electrical control, distribution and automation assemblies. The photographed configuration includes a front access door, internal mounting area, base, removable exterior sections and a door-mounted document pocket. It provides a clear starting structure that can be adapted to the component layout and installation requirements.

Cabinet Construction and Access

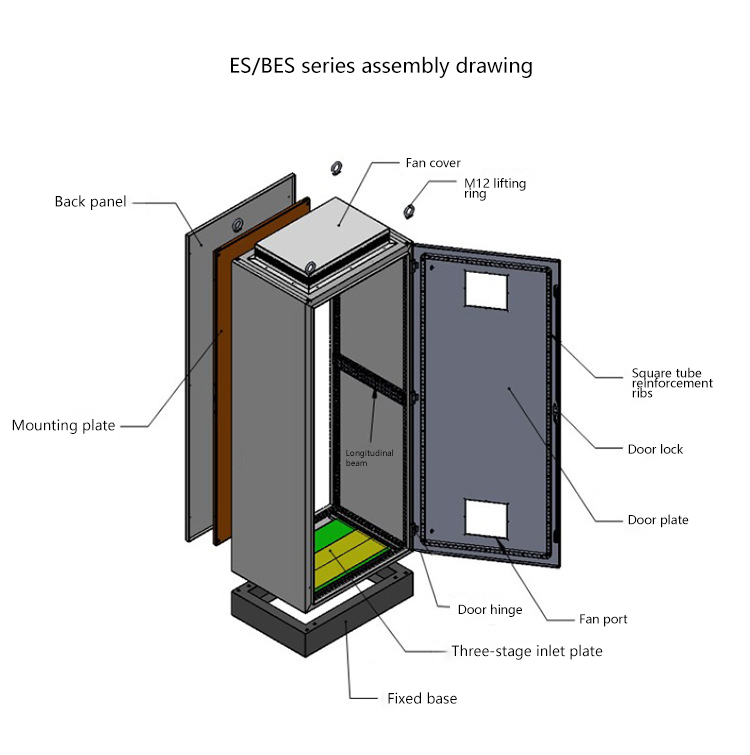

Folded sheet steel creates the main cabinet panels while the door and removable sections provide access during wiring and service. The internal arrangement can be planned around a mounting plate, rails, brackets and cable routing. Door swing, handle position and maintenance clearance should be confirmed before drawings are approved.

Standard Platform, Project-Specific Details

Using a standard cabinet concept can simplify early selection, but the final product still depends on project details. Specify the overall dimensions, steel thickness, finish, panel arrangement, cutouts, ventilation and cable entry. The catalog and drawing resources can help buyers prepare dimensions and options for review.

Indoor, Sheltered or Exposed Installation

Installation conditions determine the required material, coating, gasket and opening design. If the cabinet will face rain, dust or other environmental exposure, state the target ingress rating and all cable, fan and filter interfaces. For a project centered on environmental protection, compare the custom weather-resistant electrical enclosure. A product image or cabinet name alone does not confirm an outdoor rating.

RFQ Checklist

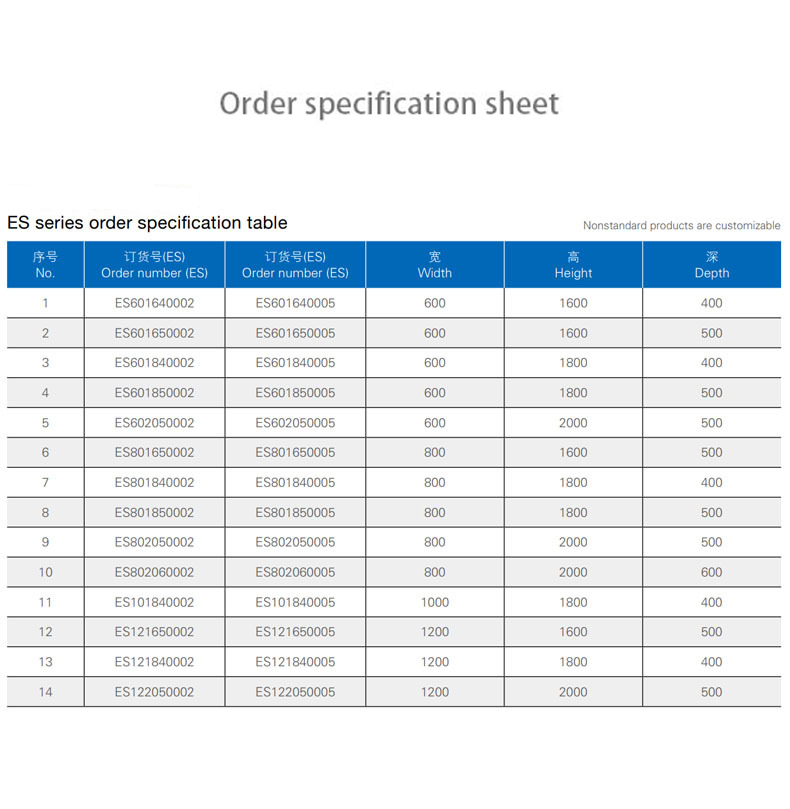

• Cabinet height, width, depth and quantity
• Steel type, thickness, color and finish

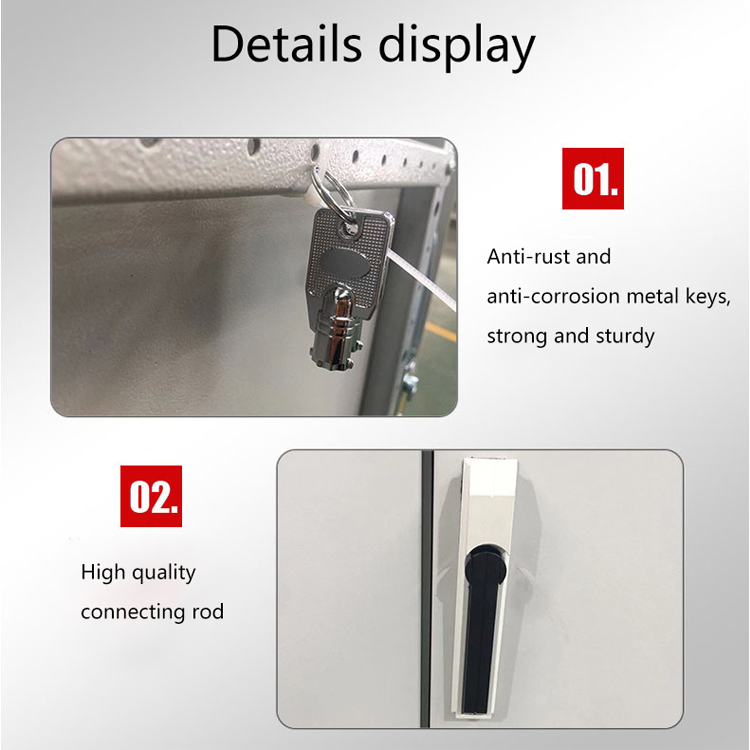

• Door, lock, hinge and panel requirements
• Mounting plate, rail and bracket layout

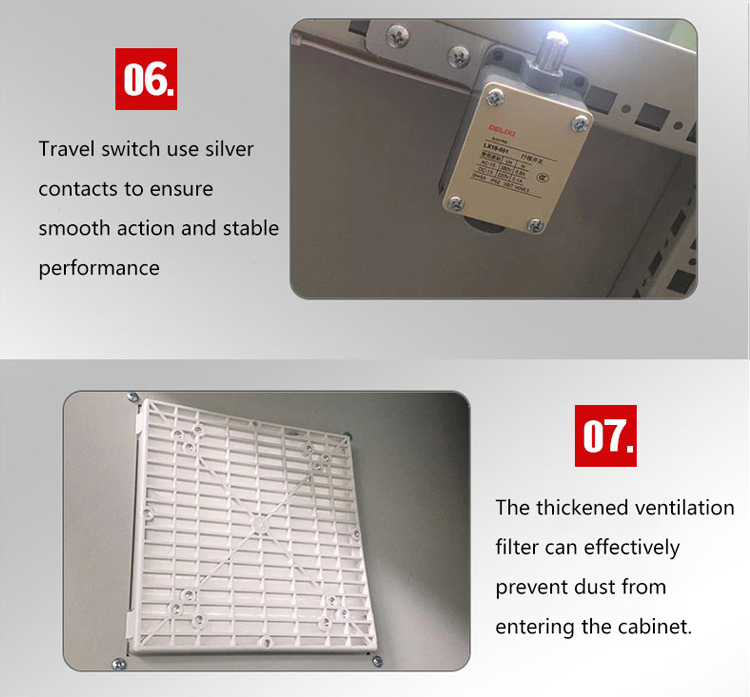

• Cutout, ventilation and cable-entry drawings
• Base, lifting and installation details
• Target standard or ingress rating, if required

Drawing and Quality Review

Anstorm can review the cabinet layout through its electrical enclosure 3D design service. Critical dimensions, door alignment, hardware and finish can then be checked using the documented quality inspection process.

Request a Cabinet Quotation

Submit the equipment layout, cabinet dimensions and required options through the contact page. The final scope, performance requirements and documentation will be confirmed against the approved project specification.
