Custom Weather-Resistant Electrical Enclosure

Custom Weather-Resistant Electrical Enclosure

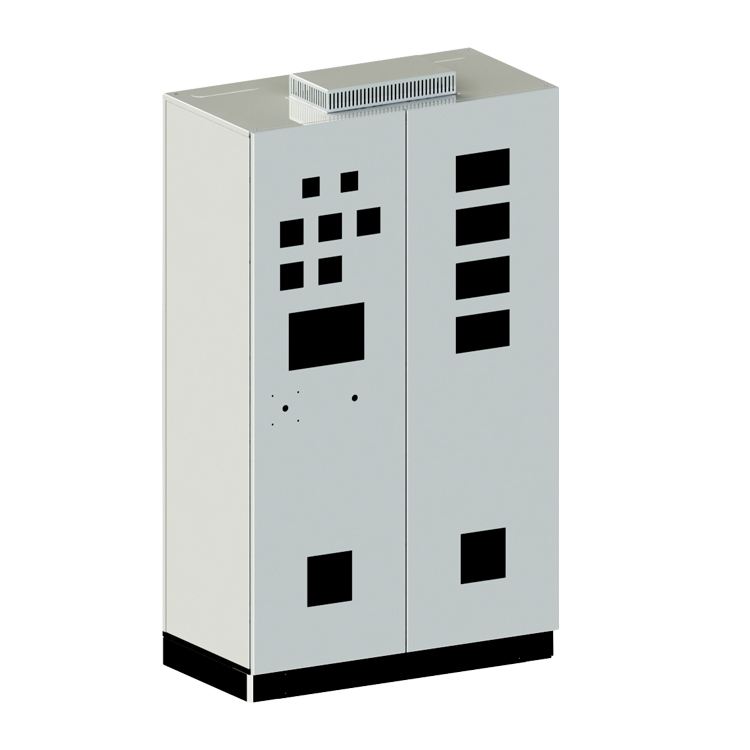

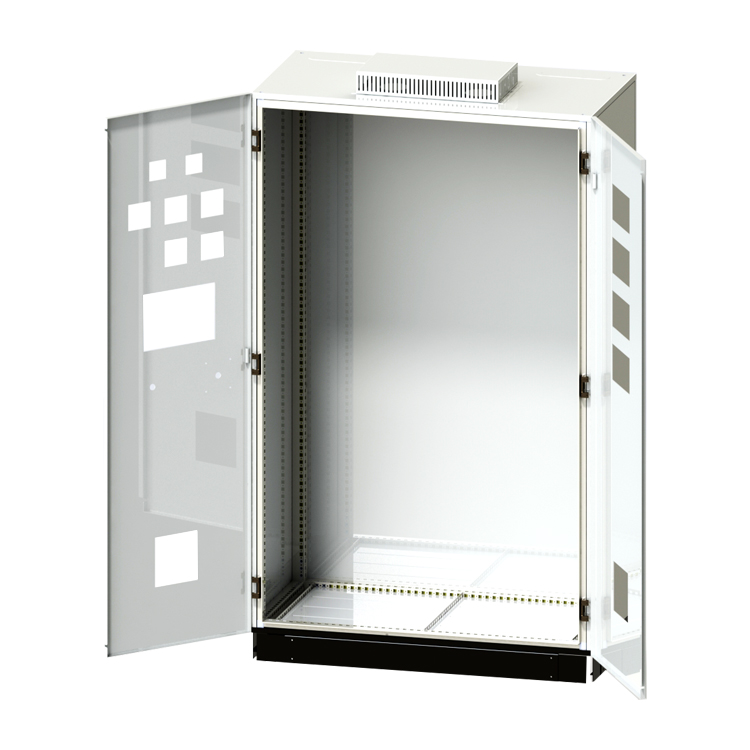

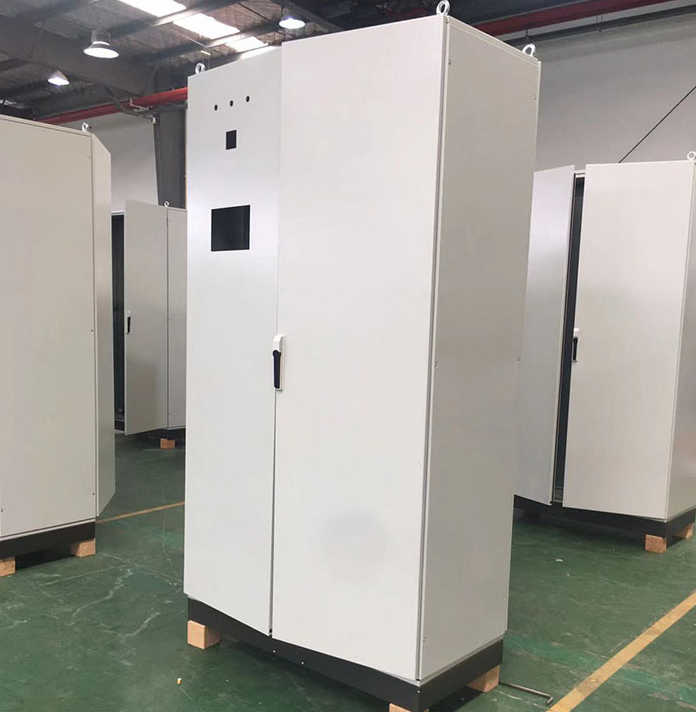

This custom weather-resistant electrical enclosure is a floor-standing cabinet platform for equipment installed where dust, moisture or changing environmental conditions must be considered. The product images show a fabricated steel cabinet with a front access door, upper control cutouts, side ventilation features and lifting points. Final protection depends on the complete specification, including material, joints, seals, doors, ventilation and cable entries.

Design the Whole Enclosure System

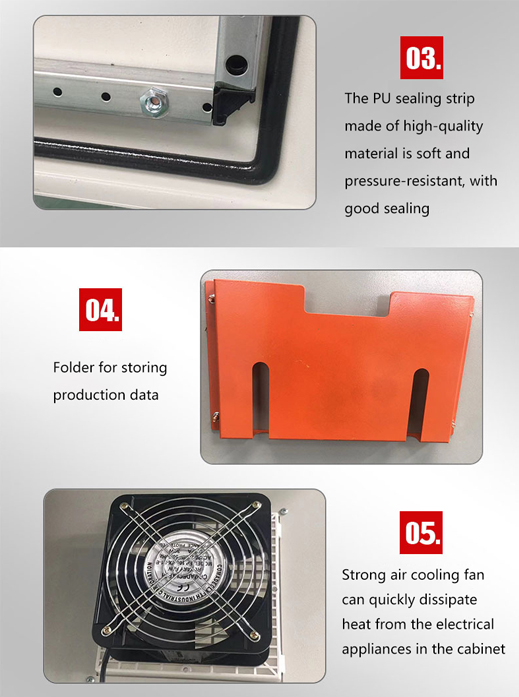

Weather resistance cannot be determined from the cabinet shell alone. Door compression, gasket continuity, gland or connector selection, vent design, roof or drip features and installation orientation all affect the finished result. State the target ingress rating and describe whether the enclosure will be sheltered, exposed, wall-adjacent or free-standing so that the design can be reviewed appropriately.

Material and Finish Selection

Powder-coated steel, galvanized steel and stainless steel serve different project priorities. The correct choice depends on exposure, corrosion risk, cleaning requirements, budget and appearance. Specify the material grade, sheet thickness, surface finish and color rather than relying on a broad “outdoor” description. Buyers evaluating stainless construction can review the stainless steel cabinet guide.

Cutouts, Ventilation and Cable Entry

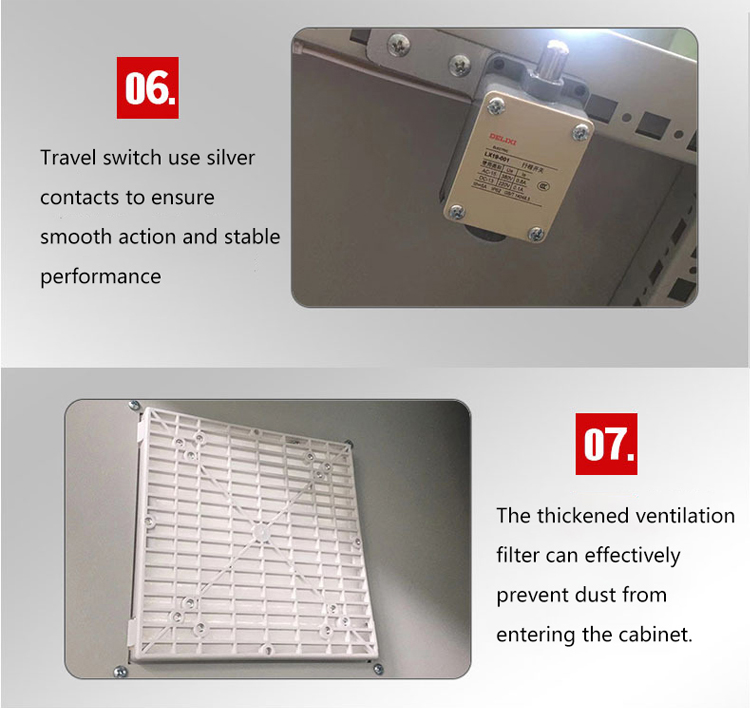

Openings for displays, switches, fans, filters and cables should be dimensioned from defined datum points. Any ventilation feature should be evaluated together with the requested ingress performance. For a standard folded cabinet format with removable panels and a door-mounted document pocket, compare the folded steel electrical cabinet.

Information Required for Quotation

• Overall dimensions and quantity
• Equipment layout and heat-load information
• Material, thickness, finish and color

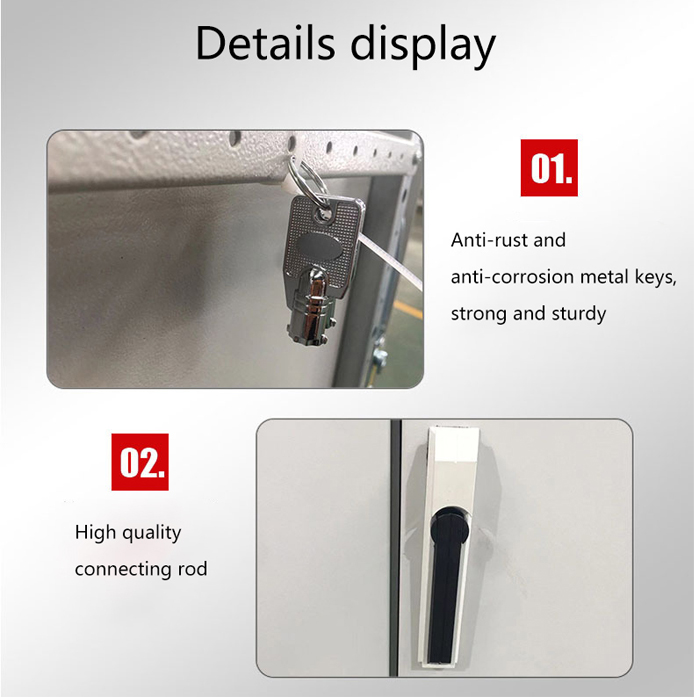

• Door, lock, hinge and gasket requirements
• Cutout and cable-entry drawings
• Mounting plate, rails and internal supports
• Installation environment and target rating

Verify the Approved Configuration

Before shipment, critical dimensions, door fit, installed hardware and visible finish should be checked against the approved drawing. See the quality inspection process for the documented workflow.

Send Your Environmental Requirements

Use the contact page to share drawings, installation conditions and the target performance requirement. Anstorm will review the fabrication scope; ratings and certifications are confirmed only for the agreed project configuration.
