Custom Automation Equipment Frame Enclosure

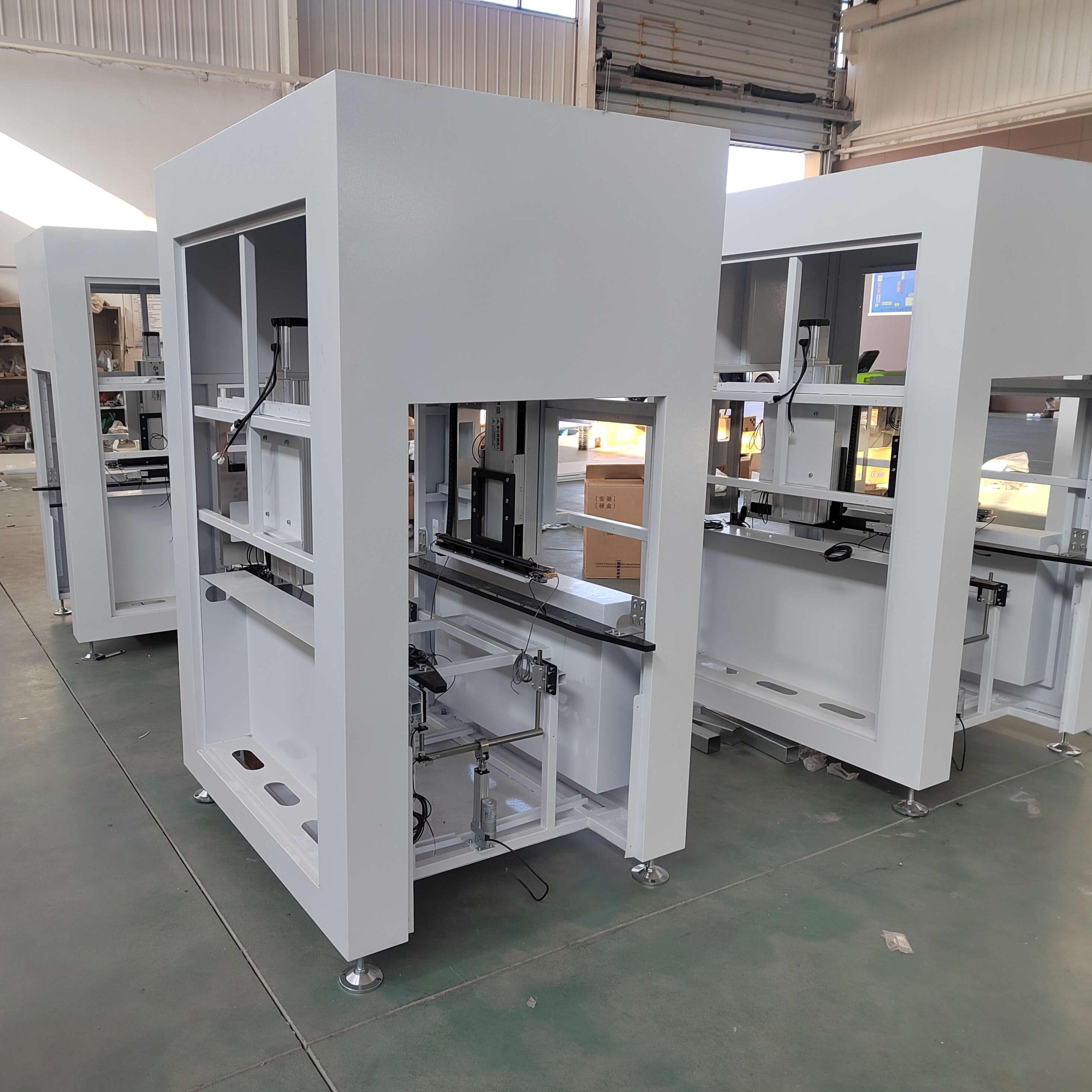

This custom automation equipment frame enclosure is a fabricated structure for mounting and surrounding industrial automation equipment. The photographed example shows an open-frame assembly with sheet-metal outer panels, internal mechanisms, lower access openings and adjustable feet. It is not a sealed electrical box, so its specification should focus on machine interfaces, structural layout and access.
Design Around the Automation Assembly
Provide the machine envelope, moving zones, process path, operator position and utility interfaces. These inputs define the frame footprint, cross members, panel geometry and opening locations. Conveyor, sensor, pneumatic, cable and maintenance interfaces should be identified before fabrication drawings are released.
Frame, Panel and Access Options
Welded or assembled frames can be combined with fixed, hinged or removable sheet-metal panels. The final arrangement should support equipment installation and servicing without obstructing critical interfaces. Transparent panels, perforations, doors or guarded openings may be added when specified in the approved design.
Manufacturing and Supply Boundaries
Fabrication may include laser cutting, bending, welding, grinding, finishing and mechanical assembly. Review the custom sheet metal fabrication service and welding and assembly service. Electrical controls, moving equipment, guarding validation and site installation are not assumed unless the quotation states otherwise.
RFQ Checklist
- 2D drawings and 3D equipment model
- Overall dimensions and interface points
- Frame and panel material specifications
- Access, door and removable-panel requirements
- Load, lifting and floor-fixing information
- Finish, color and appearance requirements
- Assembly, inspection and packaging scope
Inspection Against the Drawing
Frame dimensions, squareness, interface locations, panel fit, hardware and finish should be checked against approved documents. See the quality inspection process for the general workflow.
Request an Equipment Frame Review
Share the machine model and fabrication scope through the contact page. Anstorm can review manufacturability and clarify exclusions before quotation.
