Custom Sheet Metal Enclosure for Electrical Equipment

Custom Sheet Metal Enclosure for Electrical Equipment

Anstorm produces custom sheet metal enclosures for electrical equipment, controls, instruments and industrial assemblies. This page covers the general custom-enclosure service: the cabinet or box is built from the buyer’s dimensions, component layout, material requirement and approved fabrication drawings.

Start with the Equipment and Installation Space

Provide the component envelope, available installation area and required service clearances. Mark operator access, cable connections, external devices and mounting interfaces. If the drawing is still being developed, identify fixed dimensions separately from features that can be adjusted during manufacturability review.

Select Material and Finish

Steel, galvanized steel, stainless steel and aluminum offer different weight, corrosion, appearance and fabrication characteristics. Specify grade, thickness, finish and color rather than requesting only a “metal enclosure.” For projects centered on zinc-coated material, review the galvanized steel electrical enclosure.

Configure Access, Mounting and Thermal Features

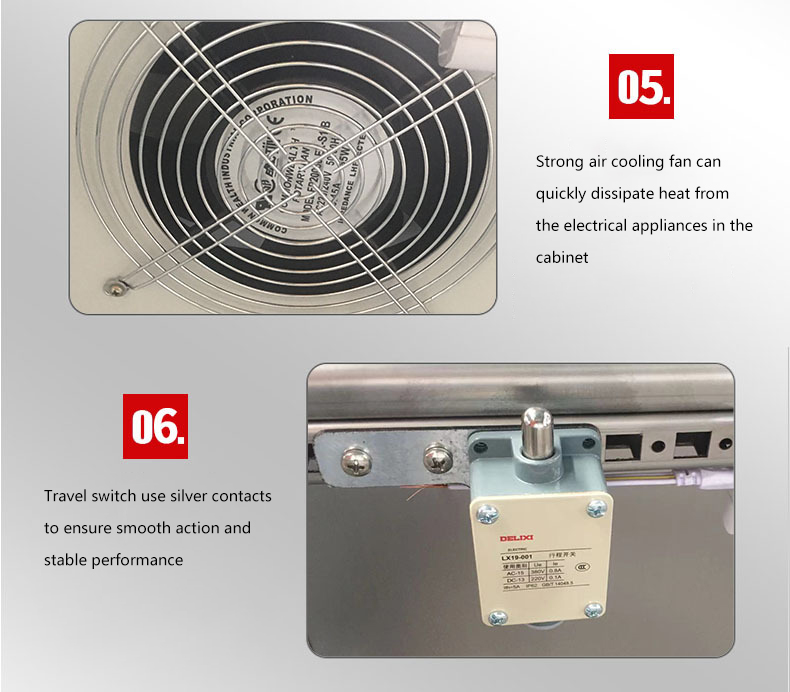

Doors, removable panels, locks, mounting plates, rails, brackets and cable-entry plates can be included according to the drawing. Ventilation openings, fans or filters should be coordinated with heat load and any ingress requirement. A ventilated indoor housing and a sealed exposed enclosure require different design decisions.

RFQ Checklist

• 2D drawings or 3D model and revision
• Overall dimensions, quantity and usage
• Material, thickness, finish and color
• Door, panel, lock and mounting requirements
• Cutout, cable-entry and ventilation drawings
• Installation environment and target rating
• Tolerances, inspection records and packaging needs

Production and Quality Review

Fabrication may include laser cutting and bending, welding, finishing and hardware assembly. Critical dimensions, panel fit, door operation and finish can be checked through the quality inspection process.

Request a Custom Enclosure Quote

Send drawings and requirements through the contact page. Anstorm can review manufacturability and clarify the supply scope before quotation.
