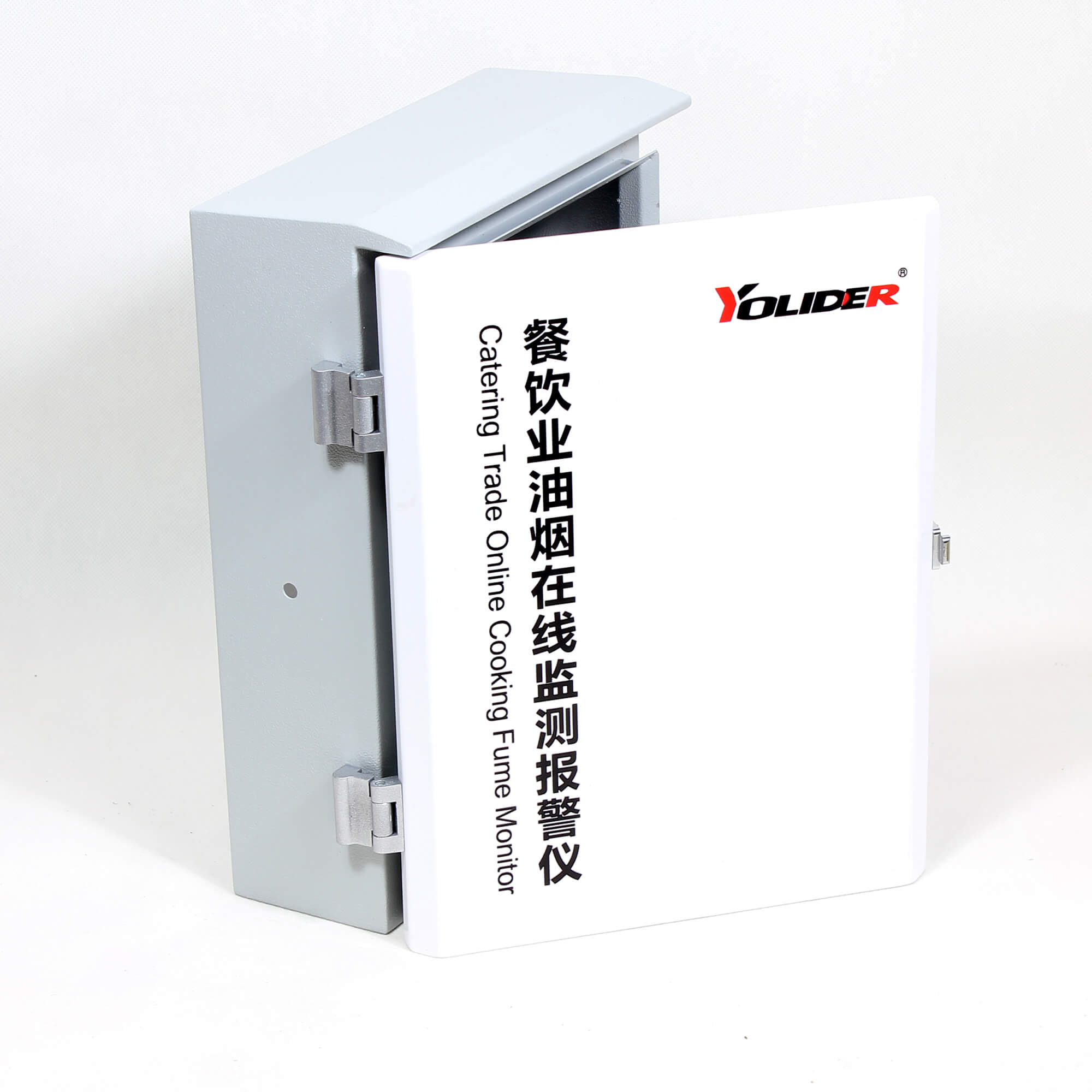

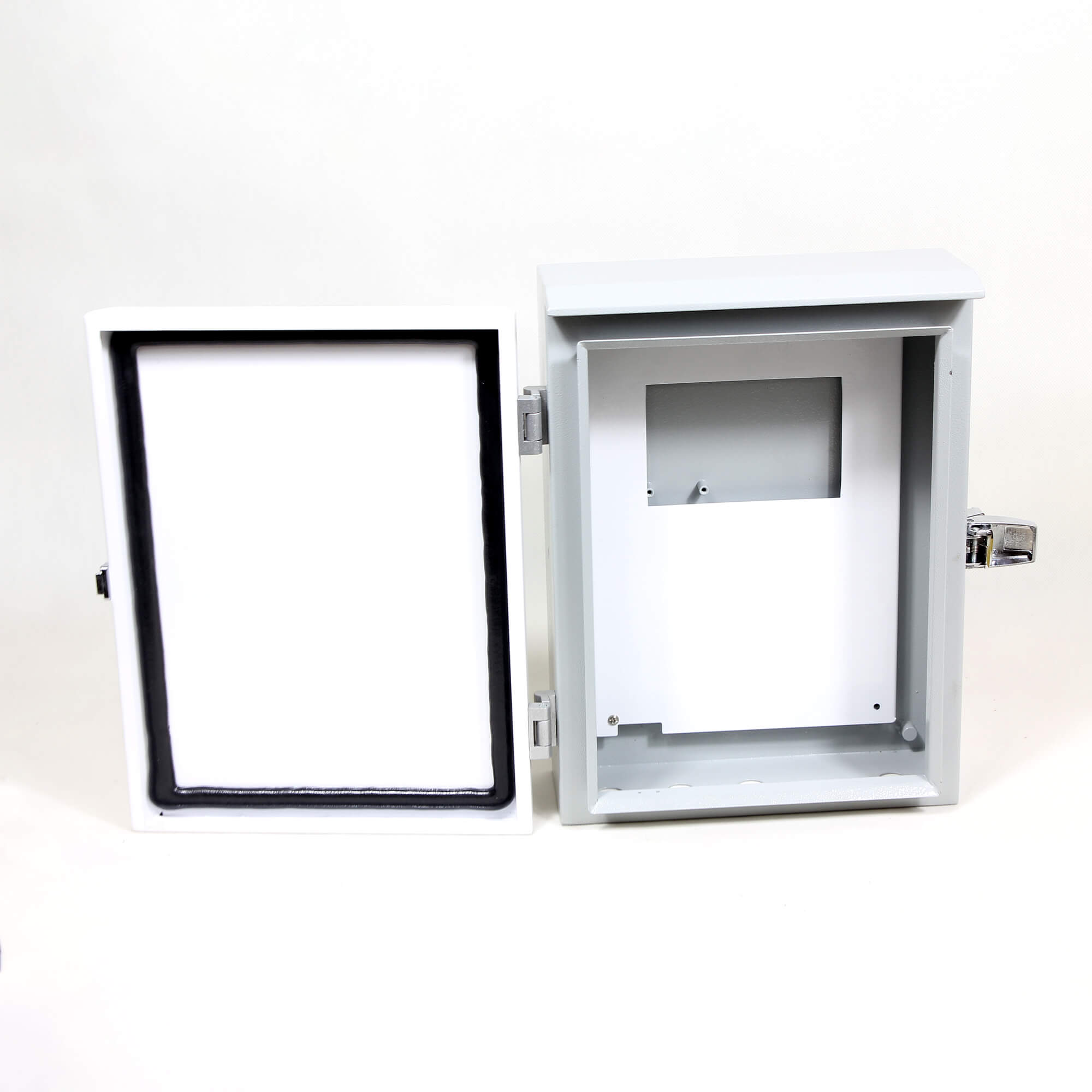

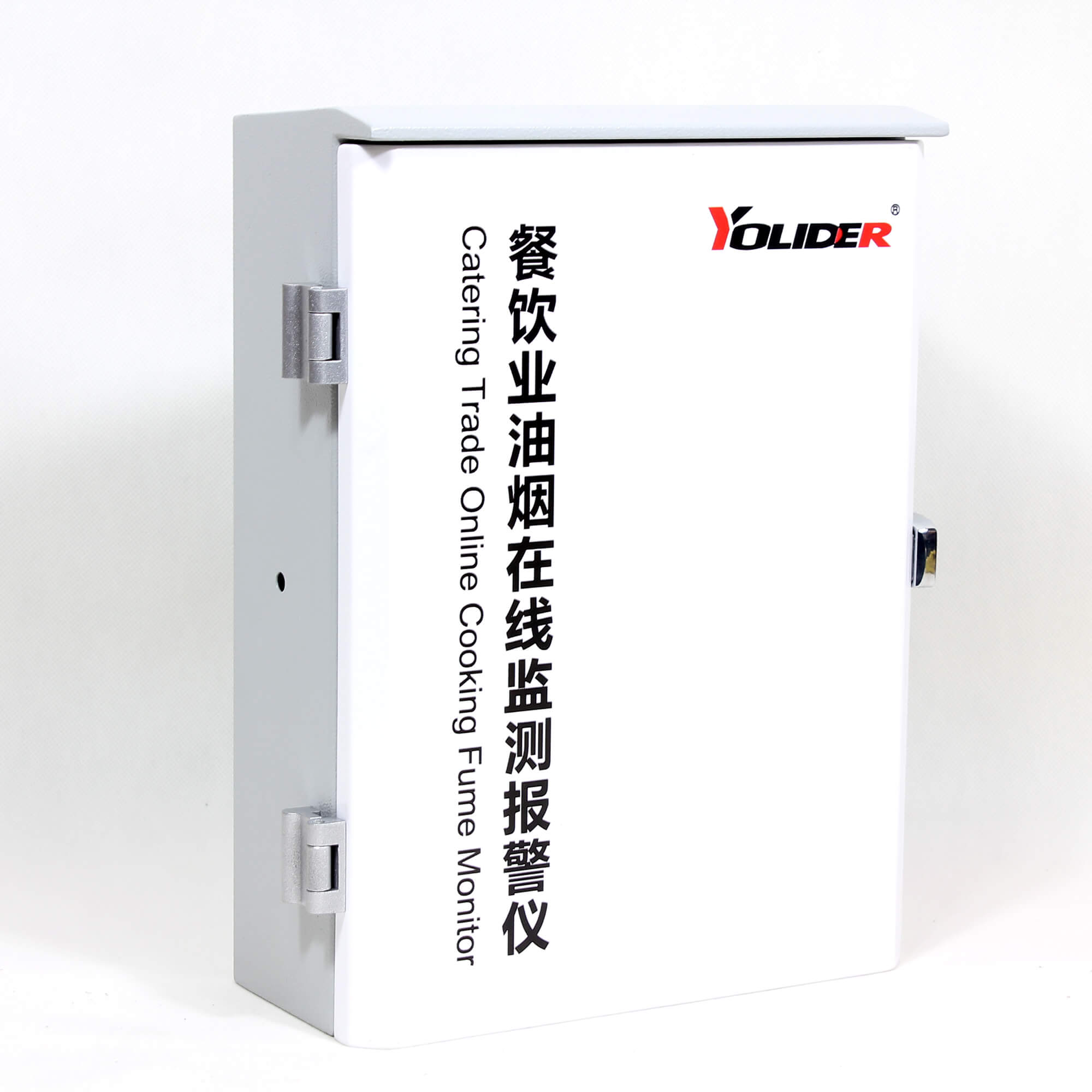

This custom wall-mounted monitoring instrument enclosure is a fabricated metal housing for electronic monitoring and alarm equipment. The photographed example was produced for an online catering-fume monitoring instrument, with a hinged cover, exterior labeling and a compact wall-mounted body. It illustrates a custom enclosure format rather than a universal smoke-alarm housing.

Build the Housing Around the Instrument

The enclosure dimensions should be defined from the PCB, power supply, display, antenna, connectors and cable-bend requirements. Service clearance, cover opening direction and mounting points also need to be considered. Providing a component layout or 3D model allows the internal space and exterior interfaces to be reviewed before fabrication.

Openings, Labels and Branding

Cutouts can be positioned for displays, indicators, buttons, glands, connectors and ventilation features. Exterior text, logos and safety labels should be supplied as approved artwork with color and placement requirements. If you need support developing the enclosure structure, review Anstorm’s electrical enclosure 3D design service.

Material and Finish

Steel, galvanized steel, stainless steel or aluminum may be considered according to weight, corrosion exposure, appearance and budget. State the required material grade, thickness, finish and color in the RFQ. If an ingress rating or industry standard applies, it must be confirmed for the full assembly, including seams, hinges, locks, cable entries and ventilation.

RFQ Information

• Overall dimensions and order quantity
• Component, PCB and connector layout
• Mounting method and installation orientation
• Door, hinge, lock and service-access requirements
• Material, thickness, finish and artwork files
• Cutout and cable-entry drawings
• Target environmental or compliance requirement

From Drawing to Inspection

After drawing approval, dimensions, openings, hardware, finish and labeling can be checked against the order requirements. See Anstorm’s quality inspection process and packaging and shipping information.

Request a Custom Instrument Housing

Send the device layout, installation conditions and artwork through the contact page. Anstorm can identify missing specifications and review manufacturability before quotation.
