304 stainless steel electrical enclosures are widely considered for industrial installations that need corrosion resistance, cleanable surfaces and long service life. Material grade alone, however, does not determine whether an enclosure is suitable. Door construction, seals, cable entries, welding, finish and the operating environment all influence performance.
What is 304 stainless steel?
Type 304 is an austenitic stainless steel used in many fabricated products. Its chromium-containing surface forms a passive layer that helps resist general corrosion. It is commonly selected for indoor industrial areas, humid locations and applications where painted carbon steel may require more frequent finish maintenance.
304 stainless steel is not the best choice for every corrosive environment. Chloride-rich, marine or aggressive chemical exposure may require another alloy, additional protection or specialist material advice. The enclosure specification should always reflect actual site conditions.
When should you consider a 304 stainless steel enclosure?
Projects may consider 304 stainless steel when one or more of the following conditions apply:
- The enclosure will be exposed to humidity, condensation or frequent cleaning.
- A durable, unpainted exterior is preferred.
- The installation requires a surface that is easier to inspect and maintain.
- Minor scratches in a painted coating would be difficult to repair after installation.
- The cabinet will be used in an industrial processing, utility or equipment environment where corrosion control is important.
The final selection should account for contaminants, cleaning chemicals, temperature, water pressure, airborne salts and contact with dissimilar metals.
Material grade is only one part of enclosure protection
An enclosure’s IP or NEMA performance depends on the complete assembly, not only the sheet metal. Door overlap, gasket compression, hinges, locks, viewing windows, cable glands, vents and welded seams can all affect protection. Any cut-out or accessory added after fabrication should be reviewed as part of the enclosure system.
Ask the supplier which construction details support the requested protection level and what verification applies to the exact configuration. A generic material statement is not evidence of an enclosure rating.
Key design decisions for stainless steel electrical enclosures
Wall-mounted or floor-standing construction
Wall-mounted boxes work well for compact controls and local distribution. Larger equipment, heavier components or greater cable space may require a floor-standing cabinet with a reinforced frame or plinth. Consider installation access and lifting points early in the design.

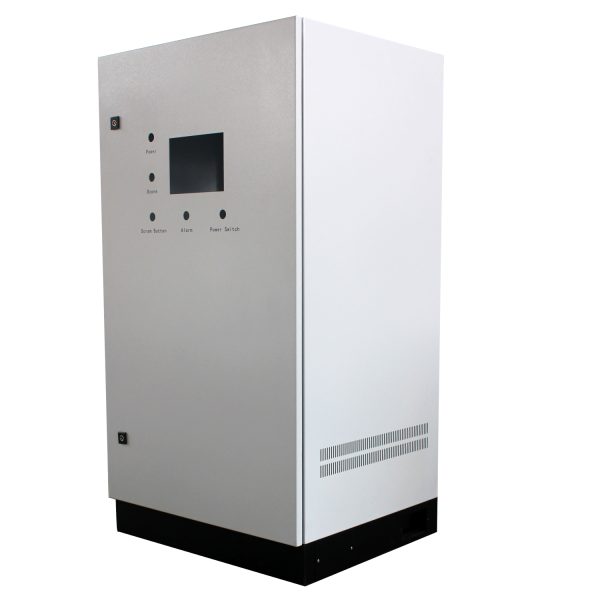

Single or double doors
A single door simplifies sealing on smaller cabinets. Double doors can improve access on wide enclosures, but the center interface, latching and gasket design require careful attention. Door-mounted equipment also adds weight and may need reinforcement.

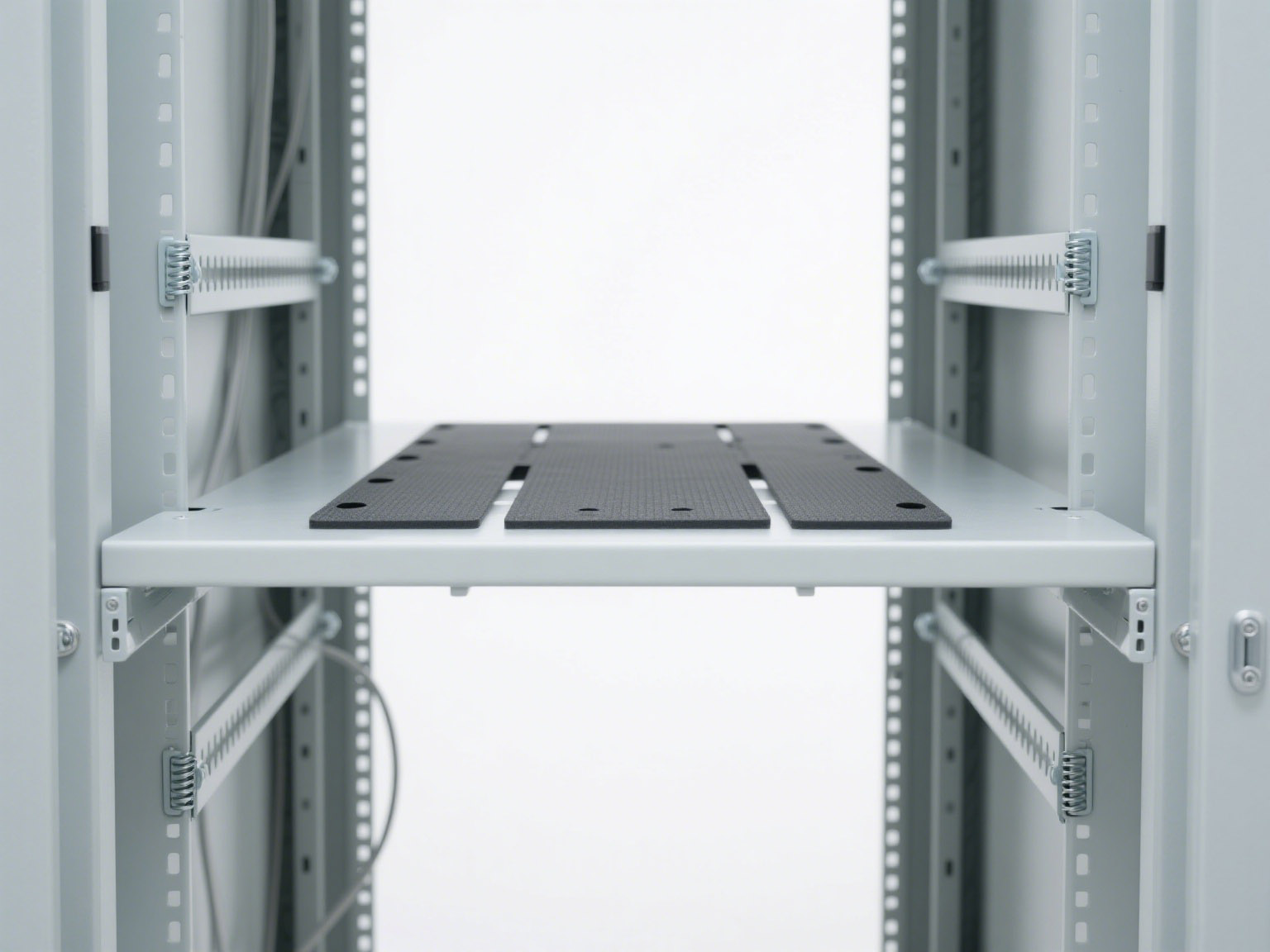

Mounting plates and internal hardware
Define mounting-plate dimensions, load, material and adjustment needs. Confirm the locations of rails, studs, earth points, cable supports and component clearances. Stainless exterior construction does not remove the need for a deliberate bonding and grounding plan.

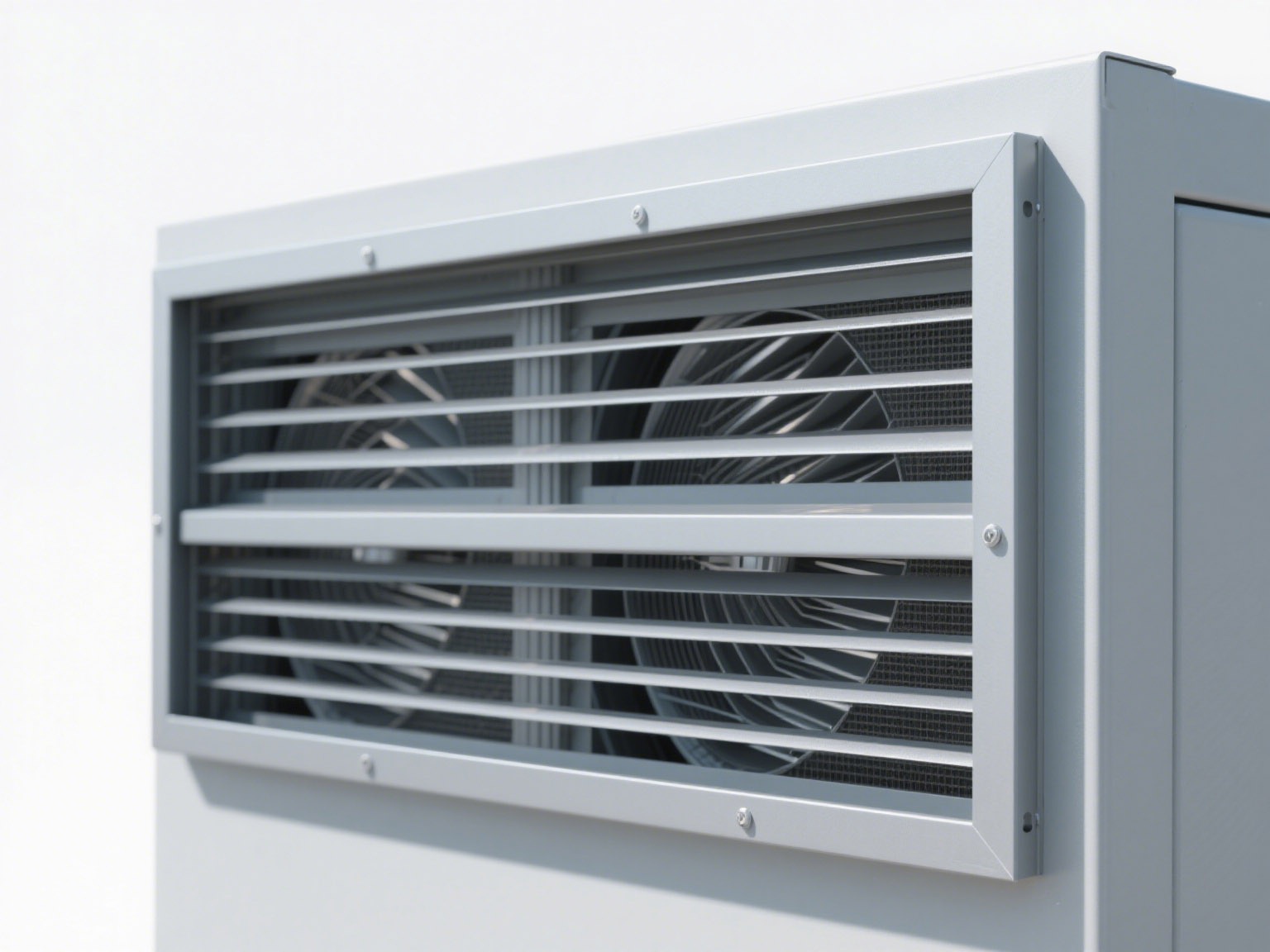

Cable entry and thermal management
Identify cable entry zones before fabrication. Removable gland plates can make installation easier, while poorly placed holes may weaken the enclosure or interfere with the seal. If the internal heat load requires fans, filters or cooling equipment, include those openings and maintenance clearances in the original protection review.
Fabrication and finish details to specify
A useful drawing or RFQ should state the stainless grade, nominal thickness, surface finish and visible grain direction where appearance matters. It should also identify which welds are continuous, which surfaces are ground, and how heat tint or fabrication residue will be addressed.
Request agreement on edge treatment, corner condition, hardware material and protective film before production. These details affect handling, appearance, cleanability and corrosion performance.
Avoid galvanic corrosion at mixed-metal interfaces
Stainless steel may be installed beside carbon steel, aluminum, copper or zinc-coated parts. In the presence of moisture, contact between dissimilar metals can contribute to galvanic corrosion. The design may need compatible fasteners, isolation washers, coatings or drainage so water does not remain at the interface.
Inspection and maintenance checklist
- Check doors, hinges and latches for alignment and smooth operation.
- Inspect gaskets for continuous contact, damage or contamination.
- Confirm unused openings are sealed with suitable components.
- Remove metal particles and fabrication debris that could rust on the surface.
- Use cleaning products compatible with the stainless grade and installed seals.
- Investigate surface staining early instead of assuming stainless steel is maintenance-free.
Information to include in a stainless enclosure RFQ
For a comparable quotation, provide the installation environment, required dimensions, mounting method, stainless grade, sheet thickness, finish, door arrangement, mounting plate, cable entries, hardware, thermal-management openings, quantity and required delivery date. Include the applicable IP or NEMA requirement and explain how the enclosure will be modified after delivery.

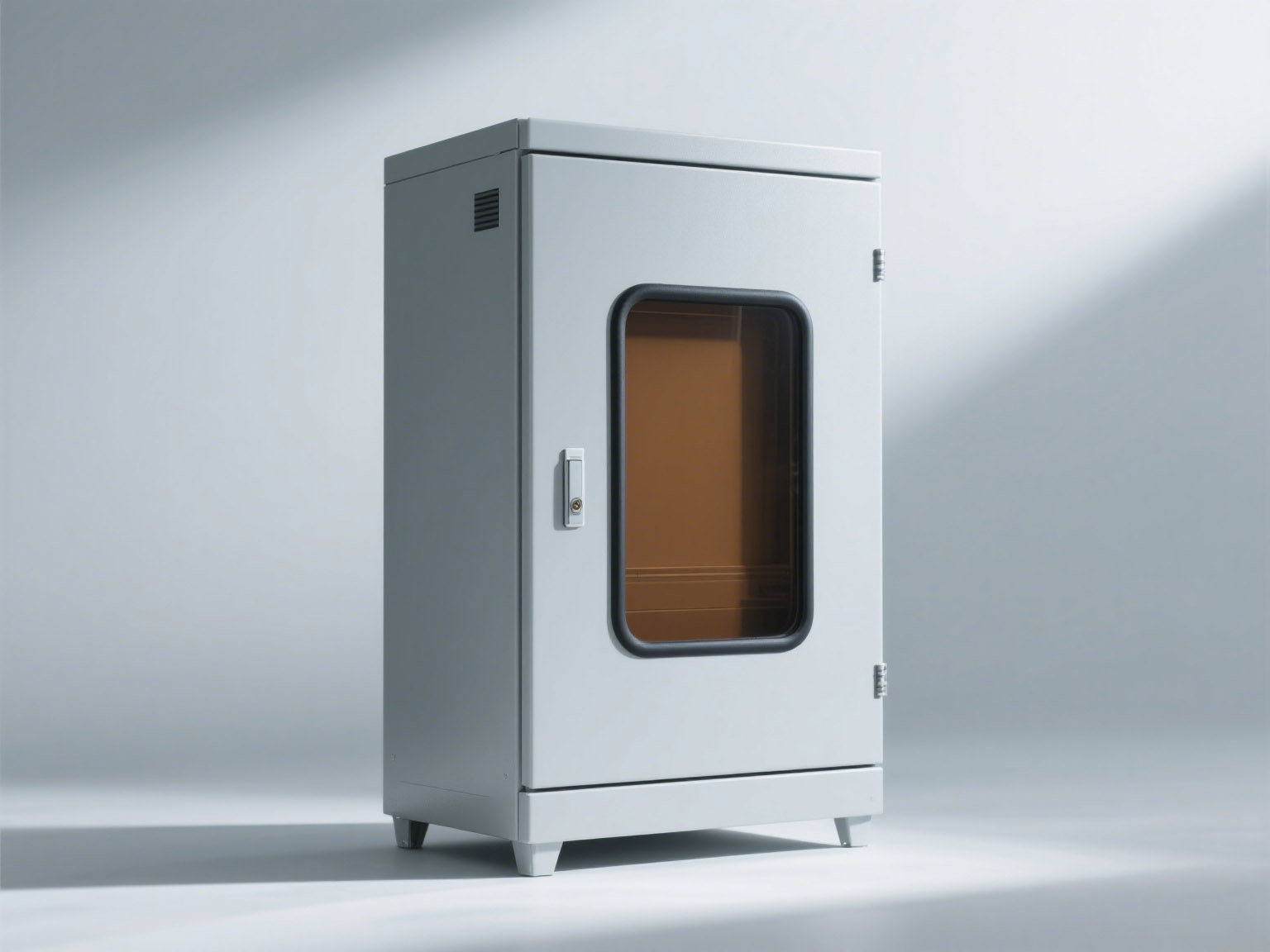

Explore stainless steel enclosure configurations

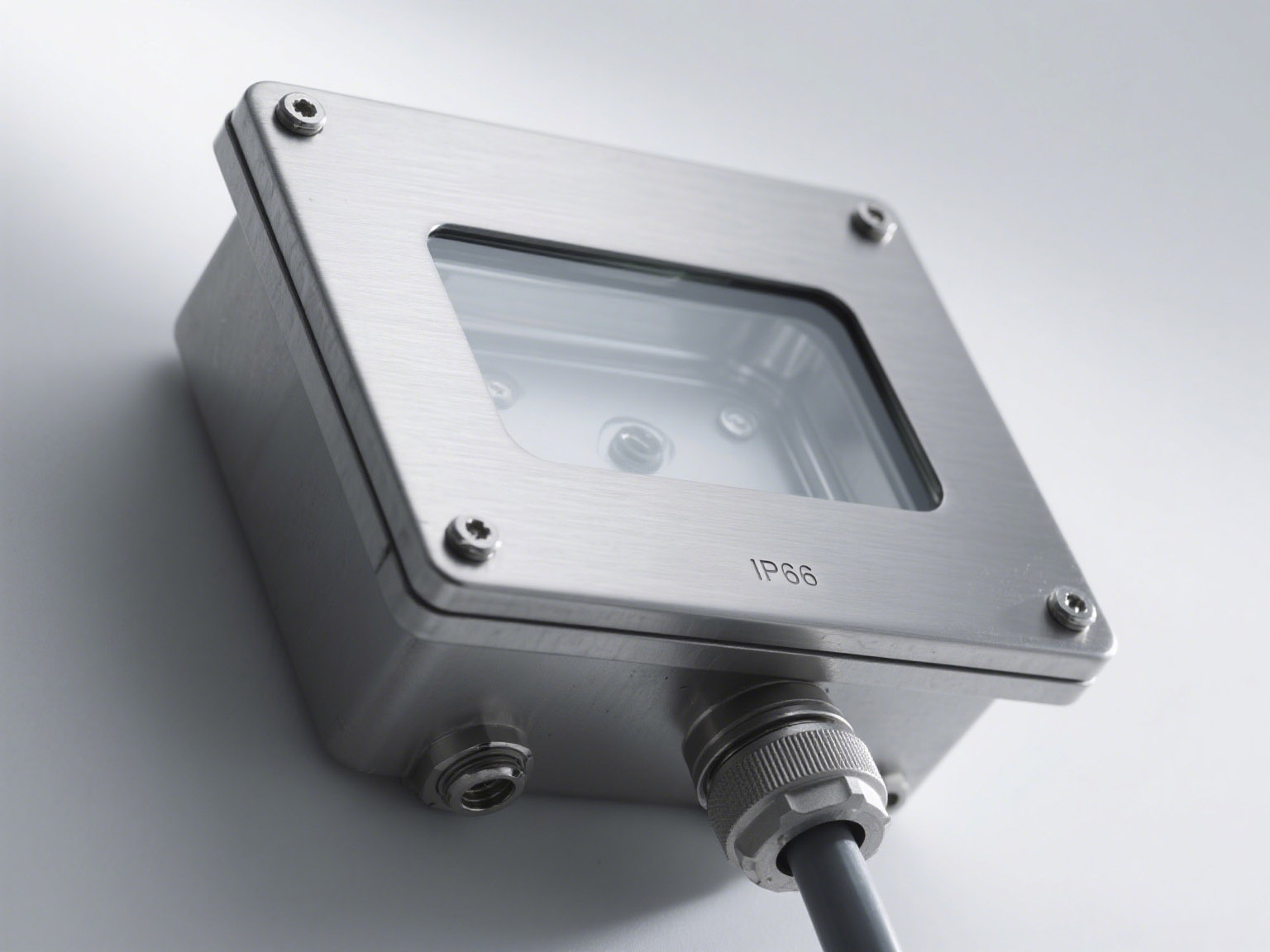

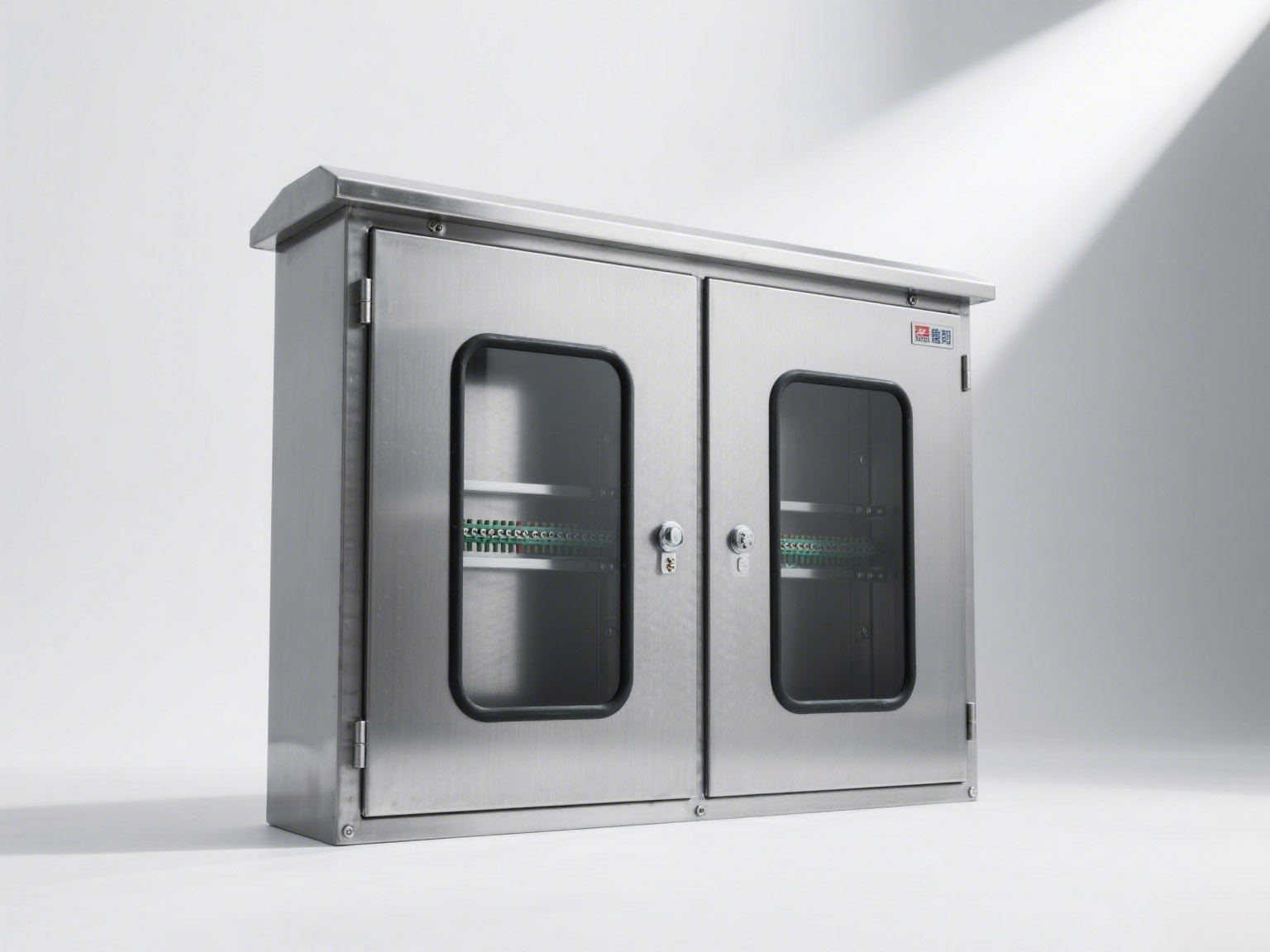

Review a stainless steel electrical enclosure, a stainless steel electrical box, an enclosure with a viewing window or a wall-mounted distribution box for configuration ideas. For a project-specific review, send Anstorm the application details and drawings.
